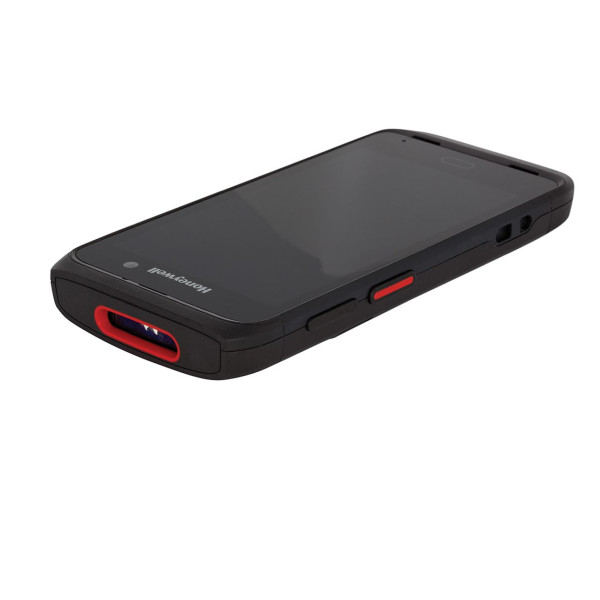

霍尼韋爾CT40 XP盤點手持終端

Dimensions

162 mm x 77 mm x 18.2 mm(6.4 in x 3.0 in x 0.7 in)

Weight

289 g (10.1 oz) with battery pack

Display Size

12.7 cm (5.0 in)

Resolution

High Defnition (1920 x 1080)

Backlight

LED

Touchscreen

Multi-touch capacitive,Corning? Gorilla Glass? 5

Hard Keys

Volume up/down key, left/right scan, power button, push to talk button

Soft Key

On-screen scan button,reprogrammable into an application quicklaunch key

Audio

3.5 mm jack (available on Wi-Fi version only), PTT, VoIP ready, speaker,HAC-compliant

I/O Ports

Durable, custom IO connector,USB Type C

ENVIRONMENTAL

Operating Temperature

-20°C to +50°C(-4°F to +122°F)

Storage Temperature

-30°C to +70°C(-22°F to +158°F)

Humidity

5% to 95% (non-condensing)

Drop

Multiple 1.2 m (4 ft) drops to concrete at -10°C to +50°C (+14°F to +122°F).Multiple drops from 1.8 m (6 ft) to concrete per MIL-STD-810G with rubber boot

Tumble

1,000 times at 0.5 m (1.6 ft)

ESD

±8 kV direct; ±15 kV air

Environmental Sealing

Independently certifed to meet IP67 and IP65 standards for moisture and particle intrusion

SYSTEM ARCHITECTURE

Processor

2.2 GHz Qualcomm?Snapdragon? 660 octa-core

Memory

4 GB DDR4x RAM, 32 GB Flash

Operating System

Starts with Android 9.1;upgradable through Android 12 and 13

Default Language

World Wide English

Storage Expansion

User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant)

Battery

Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools,super capacitor

Hours of Operation

12+ hours (depends on use)

Scan Engine

Honeywell FlexRange, N6703 Slim Imager 1D/2D barcode symbologies,Honeywell SDKs for Android

Application Software

Honeywell utilities and demos

Camera

13-megapixel color camera with autofocus, 8-megapixel front-facing camera

Sensor

Ambient light sensor, proximity sensor, accelerometer, gyroscope

WARRANTY

One-year factory warranty

WIRELESS CONNECTIVITY

WWAN

WWAN Radio (ATT/VZW/SPRINT/TMO/NA/EU) LTE Advanced Support Up to 400 Mbps CAT13 LTE downlink Up to 75 Mbps CAT5 LTE uplink

LTE (FDD)

 Bands 1, 2, 3, 4, 5, 7, 8, 12, 13,17, 19, 20, 25, 26, 28, 29

LTE (TDD)

Bands 38, 39, 40, 41

UMTS/HSPA+ (3G)

Bands 1, 2, 4, 5, 6, 8, 9, 19 GSM/GPRS/EDGE Quad-Band(850/900/1800/1900 MHz)

1xRTT/EV-DO

Bands BC0, BC1, BC10(B26BW)

WLAN

IEEE 802.11 a/b/g/n/ac;Wi-Fi certifed, 2*2 MIMO

Additional WLAN Features

802.11 d/e/h/i/k/r/u/w

WLAN Security

OPEN, WEP, WPA/WPA2(Personal and Enterprise)

Supported EAP

TLS, PEAP, TTLS, PWD,LEAP CCX Version 4 certifed

Bluetooth?

V5.0 Bluetooth and second BLE supported

Bluetooth Profles

HFP, PBAP, A2DP,AVRCP, OPP, SPP, GATT

NFC

Integrated Near Field Communication

VPN

IPSec V4/L2TP, PPTP

Push to Talk (PTT)

Supported

GPS Supported Protocols

Simultaneous GNSS Receiver Support for GPS, GLONASS,Galileo and BeiDou
